My Extensions

My Extensions is your organization's centralized library of custom extensions. It provides a single place to store, version, validate, and distribute all your custom Keycloak extensions across every deployment in your organization.

From My Extensions, you manage all your extensions and their versions in one place, across your different Keycloak environments (development, pre-production, staging, beta, and production). Track and test your extension compatibility with specific Keycloak versions to simplify and secure the upgrade process of your deployments. Each extension release goes through an automated technical validation process to verify its compatibility with the declared Keycloak versions. This validation covers technical aspects (correct loading, SPI registration, absence of conflicts) so you can focus your testing efforts on functional behavior, without worrying about startup failures.

Document your extensions for your internal teams so that no knowledge is lost, from one release to another or from one test to another. Want to share your extension with other Cloud-IAM users? You can publish it on the Cloud-IAM Marketplace directly from My Extensions.

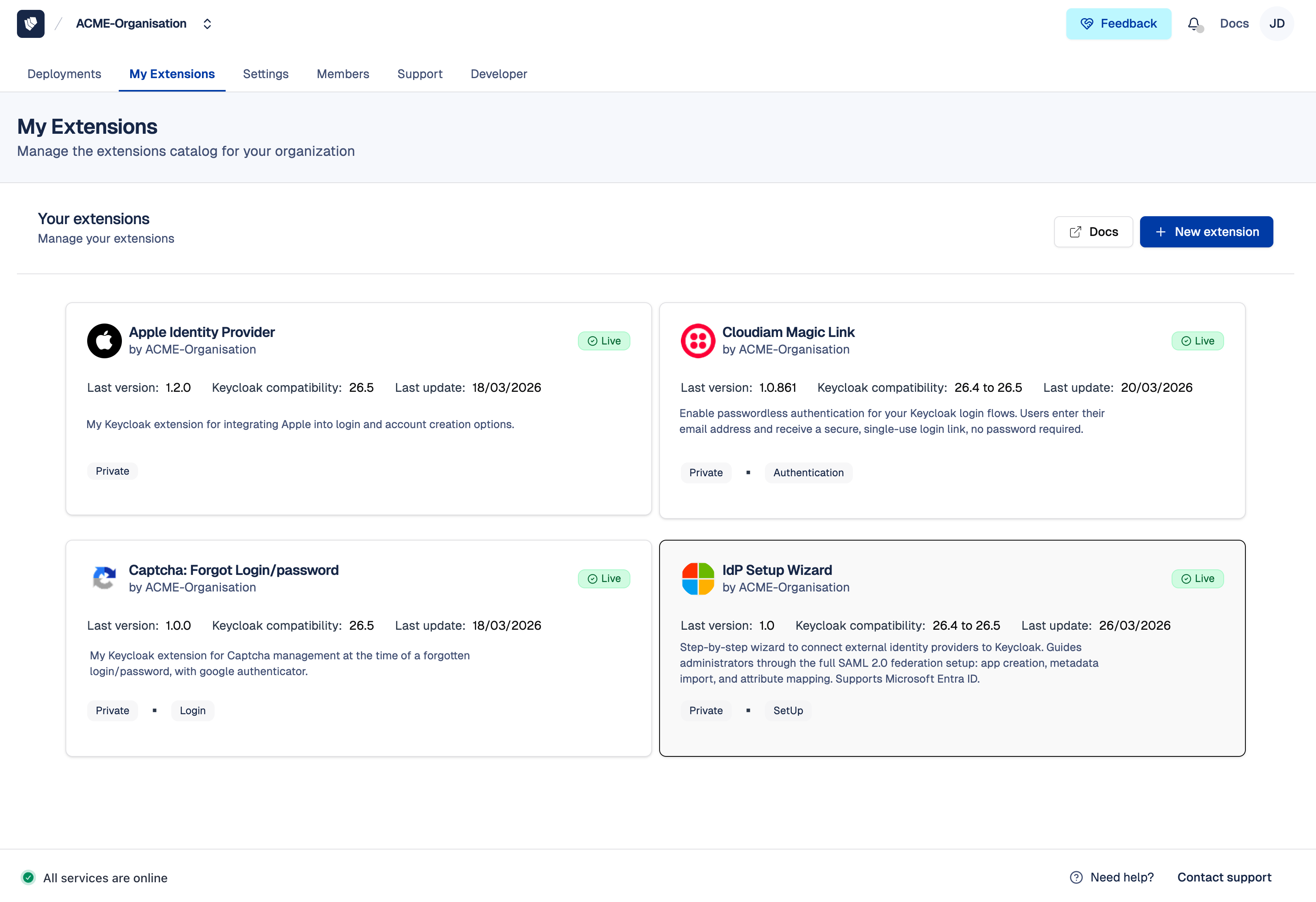

Cloud-IAM Console - My Extensions

What is a custom extension on Cloud-IAM?

Keycloak is a powerful identity and access management solution designed to cover most common use cases right out of the box. However, there are situations where its default functionality may not fully address your unique business requirements. In these cases, custom extensions allow you to tailor and enhance Keycloak, bridging functionality gaps and adapting the platform precisely to your needs.

An extension in Cloud-IAM represents a single customization, for example, a custom authenticator, a user federation provider, or an event listener. Each extension is managed at the organization level and can be installed on any of the organization's deployments.

For a detailed overview of what custom extensions are, how they work, and best practices, refer to our Custom Extensions Reference.

With Cloud-IAM Managed Keycloak deployments, direct access to your Keycloak server for deploying custom extensions is not available. Instead, all custom extensions must be uploaded through the Cloud-IAM Console or via the Cloud-IAM API.

What are the prerequisites to use My extensions feature on Cloud-IAM?

Before managing My extensions on Cloud-IAM, please ensure the following:

• Dedicated Keycloak Deployment: Custom extension support is available only on dedicated Keycloak deployments managed by Cloud-IAM.
• Support Plan: Your Cloud-IAM support plan must include the Custom Extension privilege, more details in Cloud-IAM pricing page.
• User Role: You must have the Editor role within your organization to upload, update, or delete custom extensions. For more details, see Organization Roles.
• Extension Packaging: Custom extensions must be packaged as Java .JAR files, compliant with Keycloak's Service Provider Interfaces (SPI).

How to access My Extensions?

To manage your organization's custom extensions, access the My Extensions library from the Cloud-IAM Console.

1. Open Cloud-IAM console (directly from the home page with the list of your deployment(s))
2. Navigate to the My Extensions tab

You will now see a list of all extensions created by your organization, along with their current status.

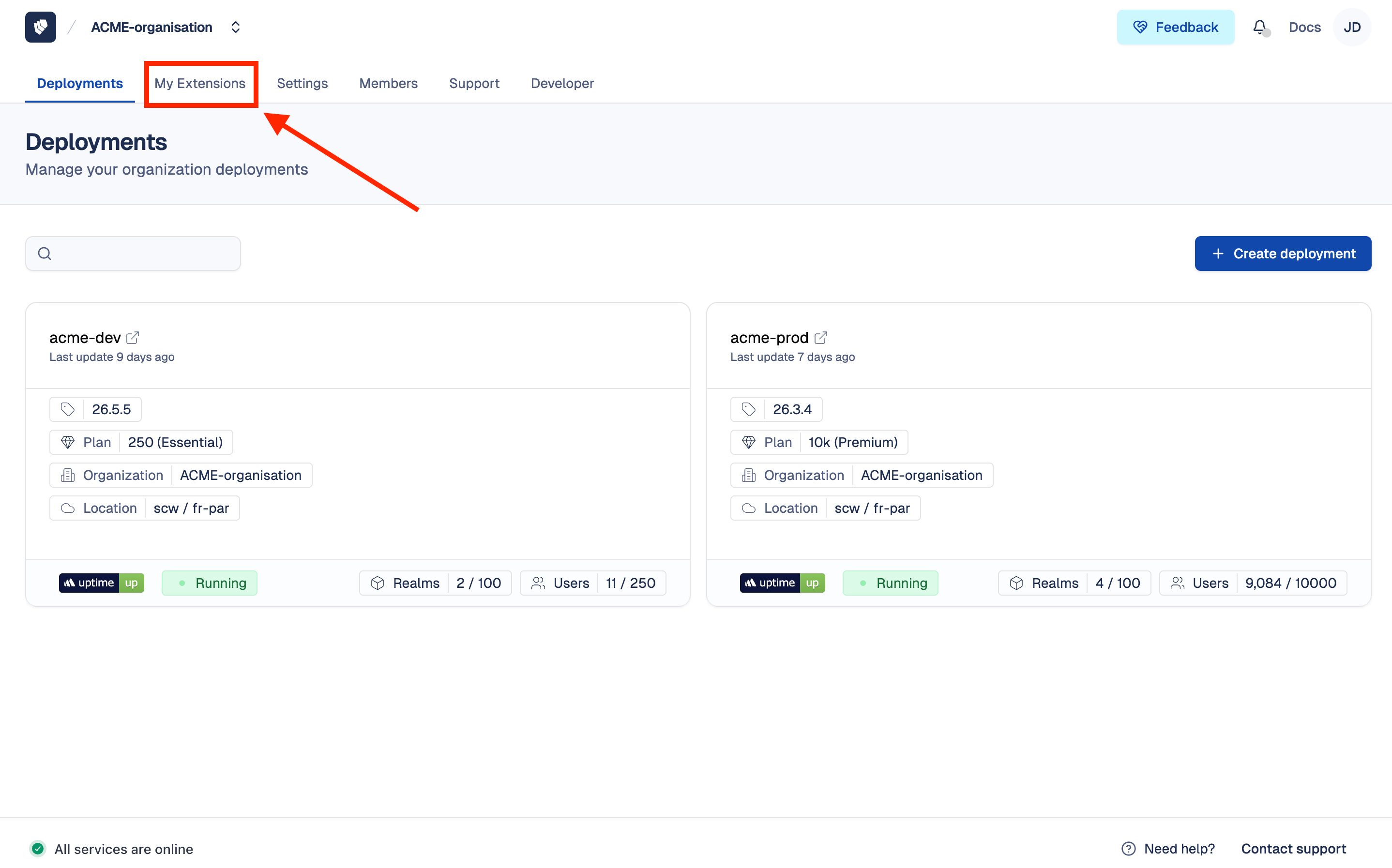

Cloud-IAM Console - Access My Extensions feature

How to upload or create a custom extension on Cloud-IAM console?

You can upload your custom Keycloak extensions, packaged as Java .JAR files, directly through the Cloud-IAM Console. Once uploaded, your extension is stored in your organization's My Extensions library, where you can document it, validate it against specific Keycloak versions, and make it available for installation across all your deployments.

Follow these steps to create a new extension:

1. Follow this tutorial to access My Extensions

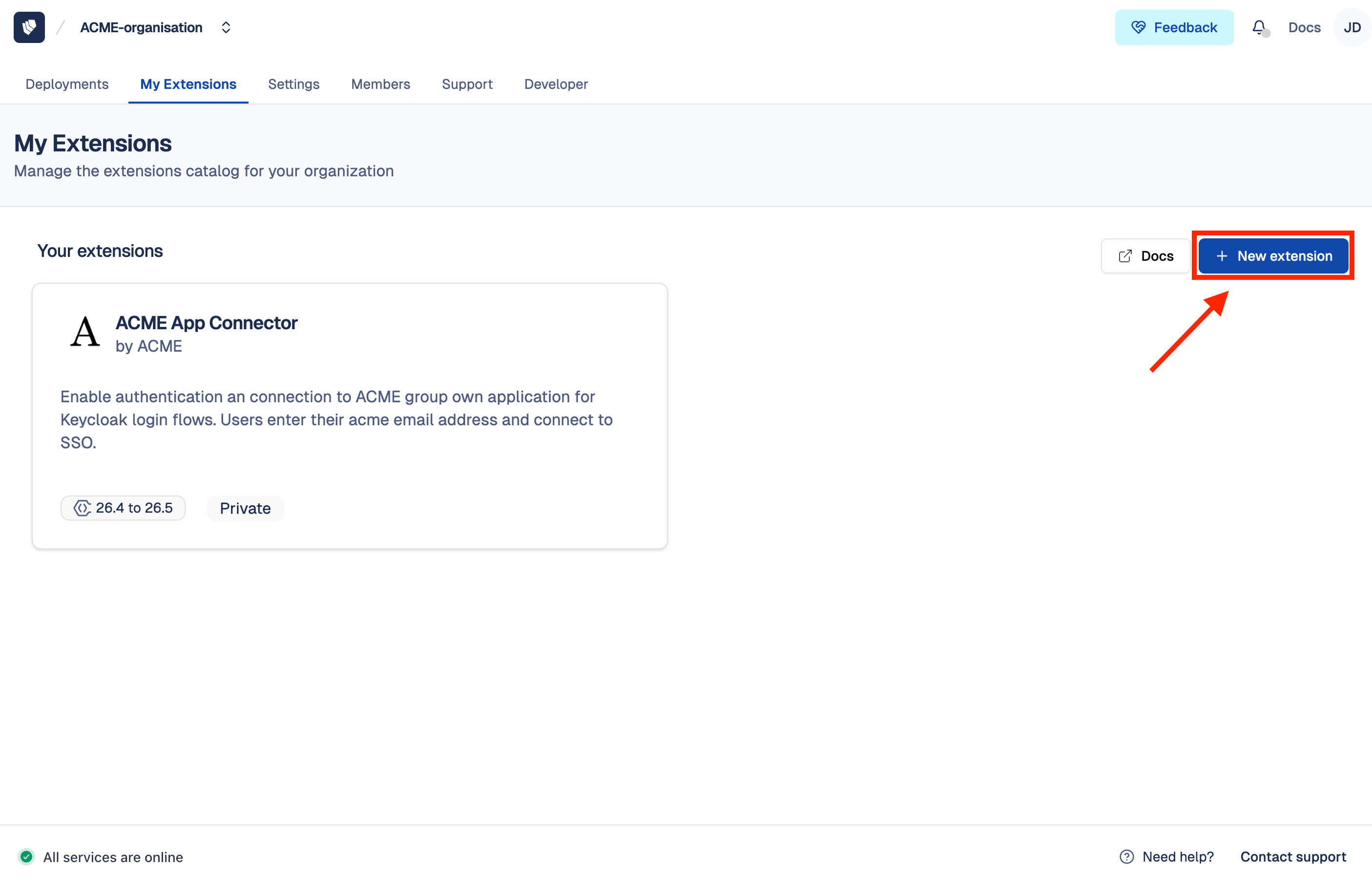

2. Click on the + New extension button

Cloud-IAM Console - Add + New extension

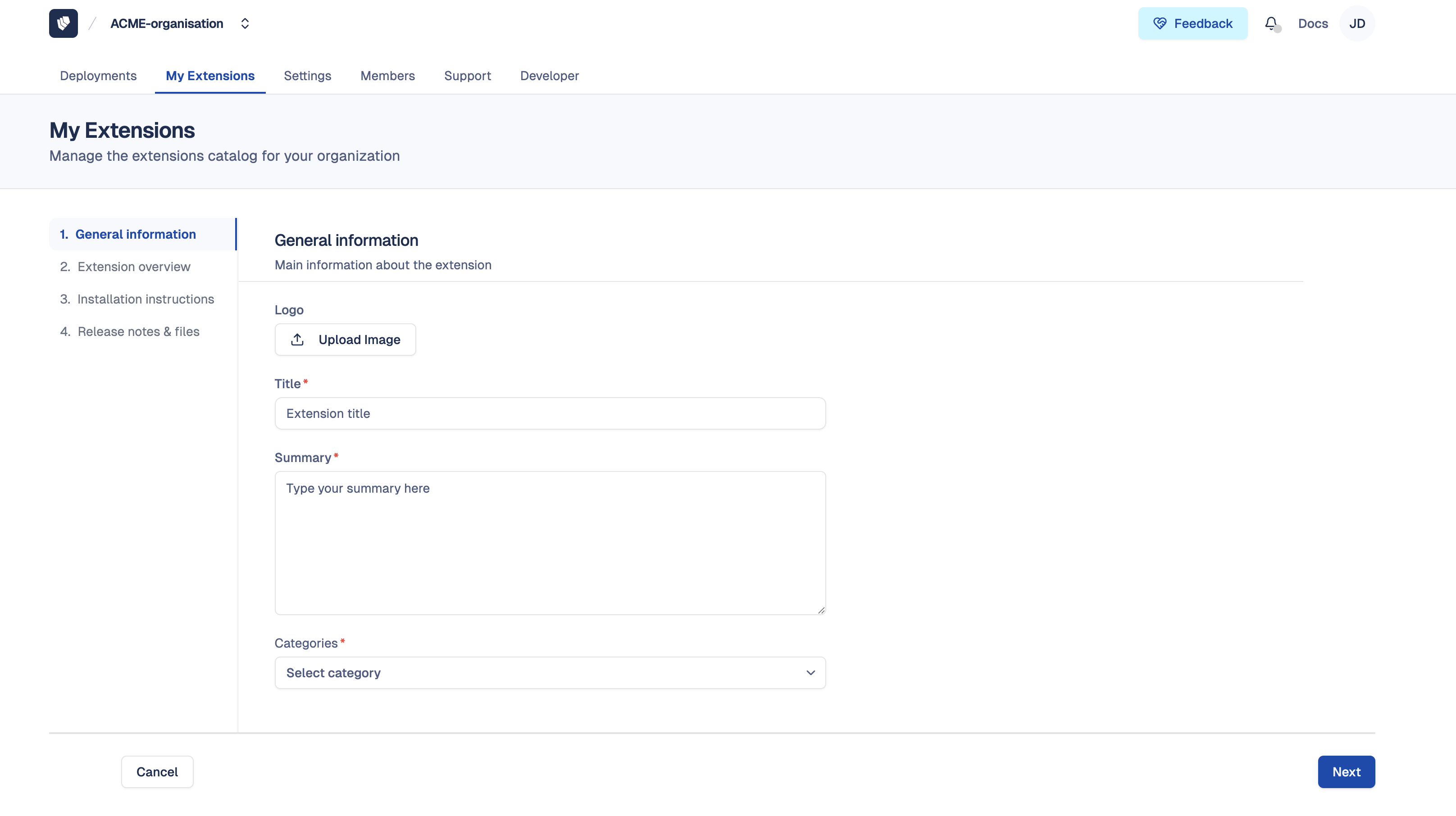

Step 1 — General information

• Register the extension name and summary
• Upload a logo for your extension
• Select one or more categories to which your extension belongs

These details help document your extension for yourself and other members of your organization.

Extension creation — Step 1 — General information

Step 2 — Overview

• Upload up to 5 screenshots to showcase your extension
• Write a detailed description of your extension: what it does, what it enables, and its key features. This description is visible to your entire organization if the extension is set to private, or to all organizations if set to public.

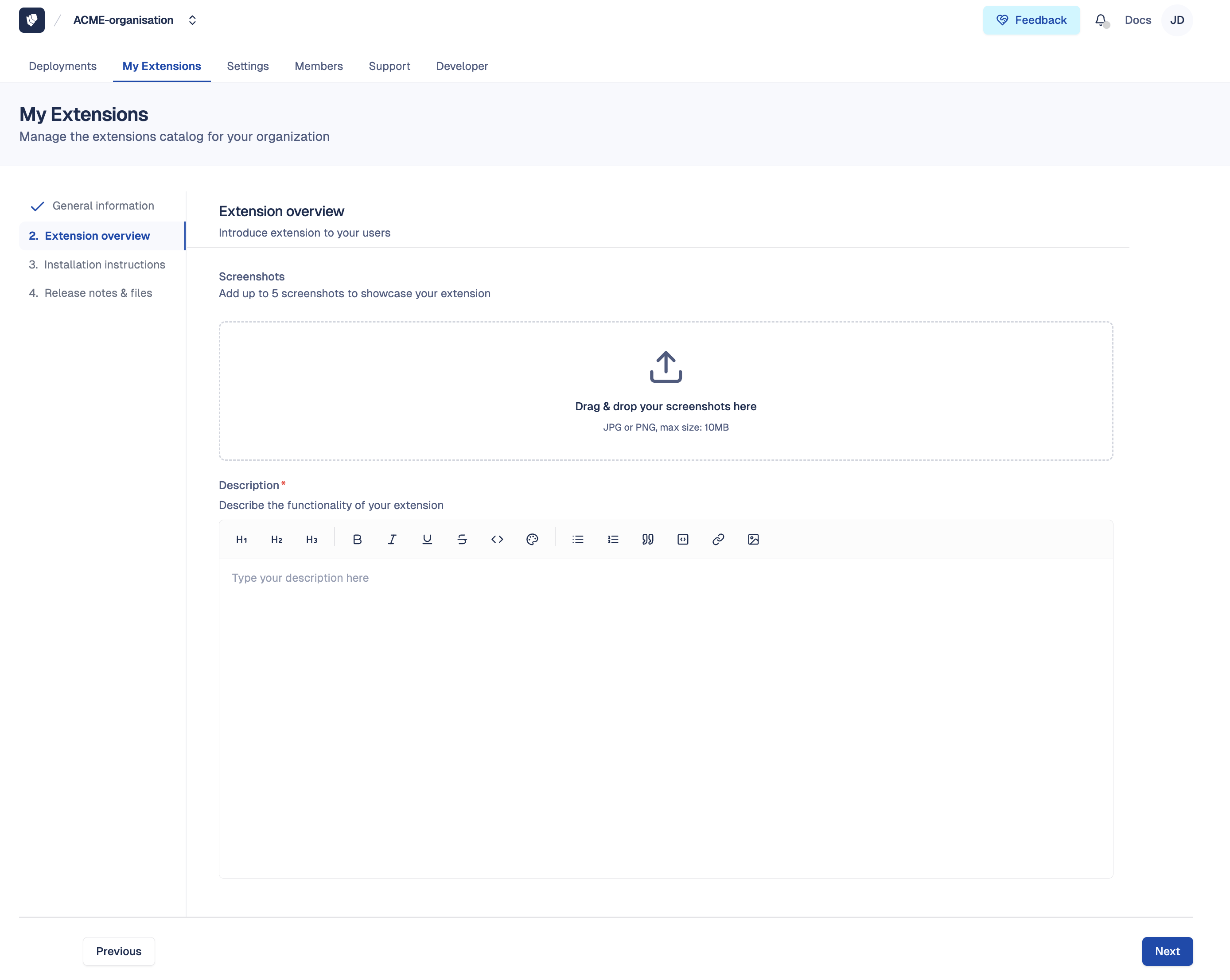

Extension creation — Step 2 — Overview

Step 3 — Installation instructions

• Provide a how-to-install guide to help your team or external users set up the extension after installation (for example, environment variables to configure or steps to follow in the Keycloak admin console)

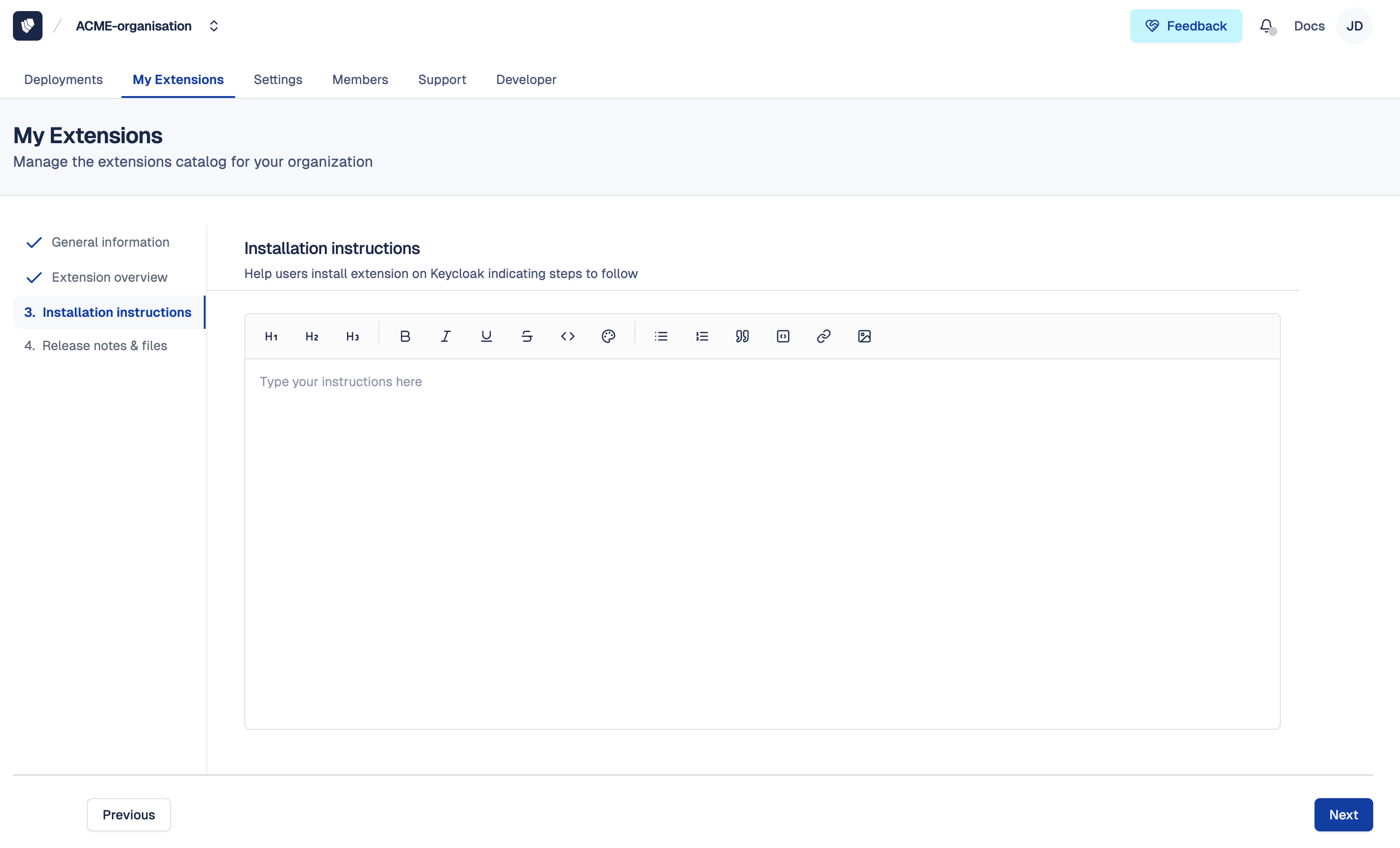

Extension creation — Step 3 — Installation instructions

Step 4 — Release notes & files

• Set the version number
• Upload your JAR file(s) (up to 5)
• Select the Keycloak SPI(s) implemented by your extension
• Define the Keycloak compatibility range (oldest to latest supported versions)
• Add release notes to describe what changed in this version, such as new features, bug fixes, or breaking changes

Once submitted, your extension goes through an automated validation process before being available in your organization's library named My Extensions.

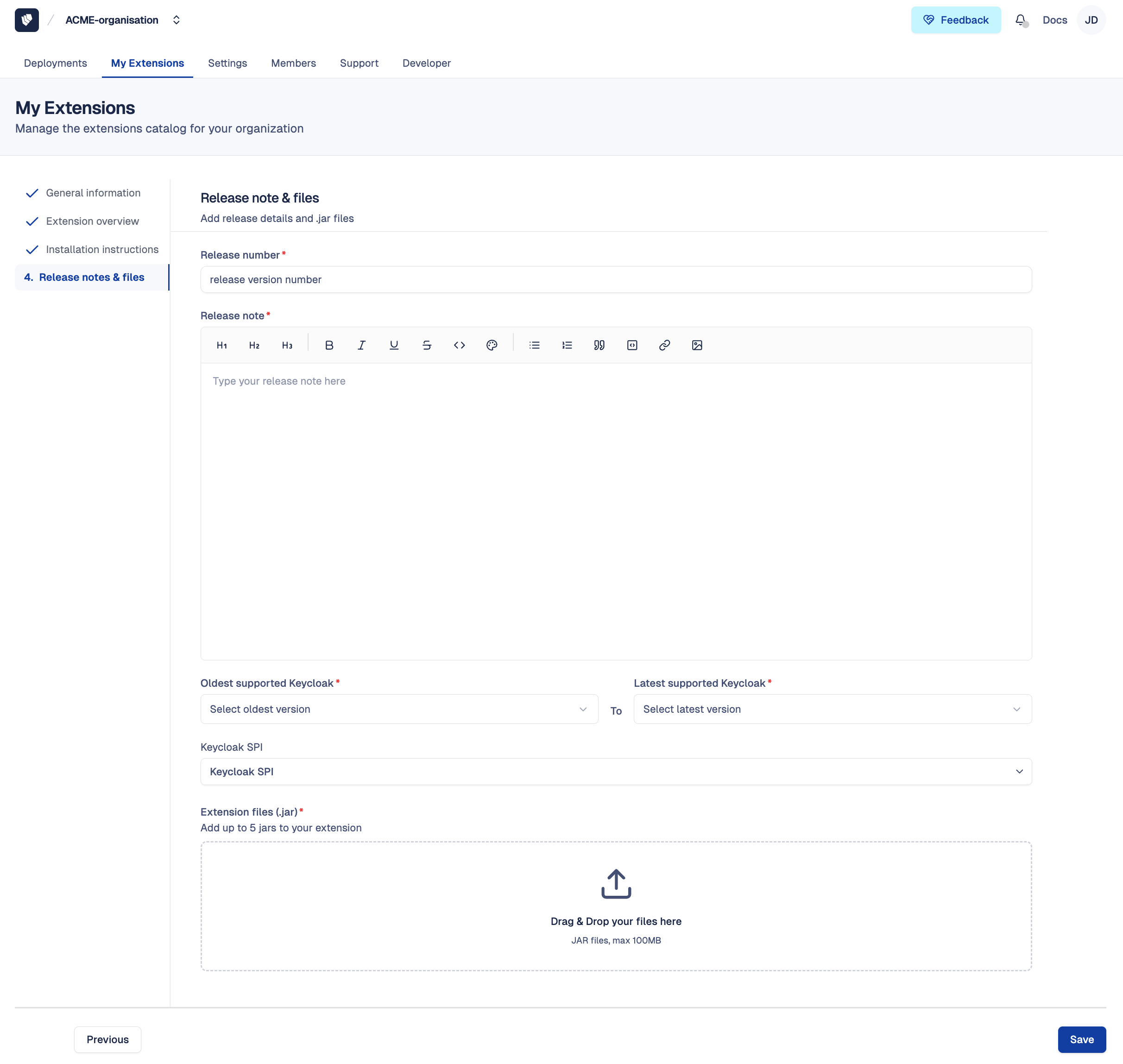

Extension creation — Step 4 — Release notes & files

How to edit an extension?

1. Follow this tutorial to access My Extensions
2. Select the extension to edit
3. From the extension detail page, you can edit:

• General information: name, summary, visibility, categories, logo
• Overview: description, screenshots
• Installation instructions: how-to-install guide
• Release: version number, release notes, Keycloak compatibility (JAR files cannot be modified on an existing release — create a new release instead)

Cloud-IAM Console - Extension Edit

How to publish or unpublish an extension on Cloud-IAM console?

Once your extension has at least one validated release, you can make it available for installation across all deployments within your organization.

1. Follow this tutorial to access My Extensions
2. Select the extension you want to publish or unpublish
3. Click on Available to publish or Unavailable to unpublish

Action	Status	Result
Available	Live	Extension is visible and installable on every deployment
Unavailable	Unlisted	Extension is no longer visible or installable on new deployments

Existing installations are not affected

Unpublishing an extension does not remove or uninstall it from deployments where it is already installed.

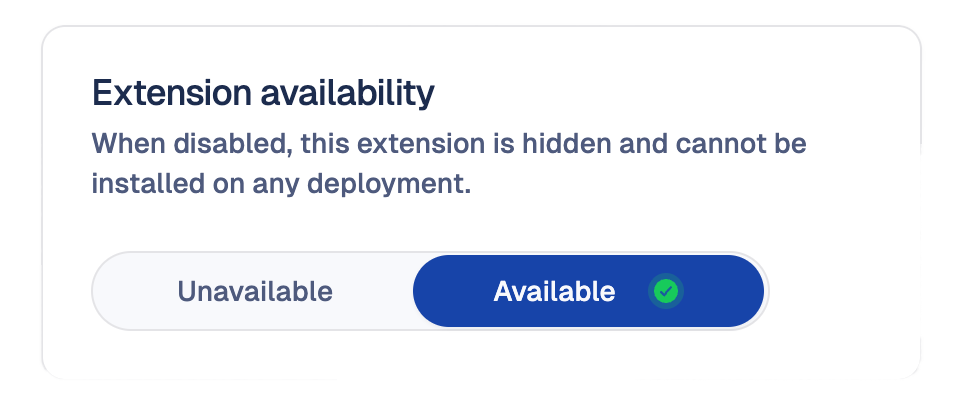

Extension- Availability status

How to configure automatic compatibility checks?

Each time a new Keycloak version is released on Cloud-IAM, you would normally need to manually extend the compatibility range of each extension. Automatic compatibility checks remove this burden: Cloud-IAM automatically tests your extension against each new Keycloak version and updates its compatibility range if the validation passes.

When enabled, if your extension's latest release already supports the previous Keycloak version, Cloud-IAM will automatically run the technical validation process against the new version within 24 hours of its release. If the validation passes, the new Keycloak version is added to the release's compatibility range. If it fails, the compatibility range remains unchanged and you can review the validation details from the release page.

1. Follow this tutorial to access My Extensions
2. Select the extension to configure

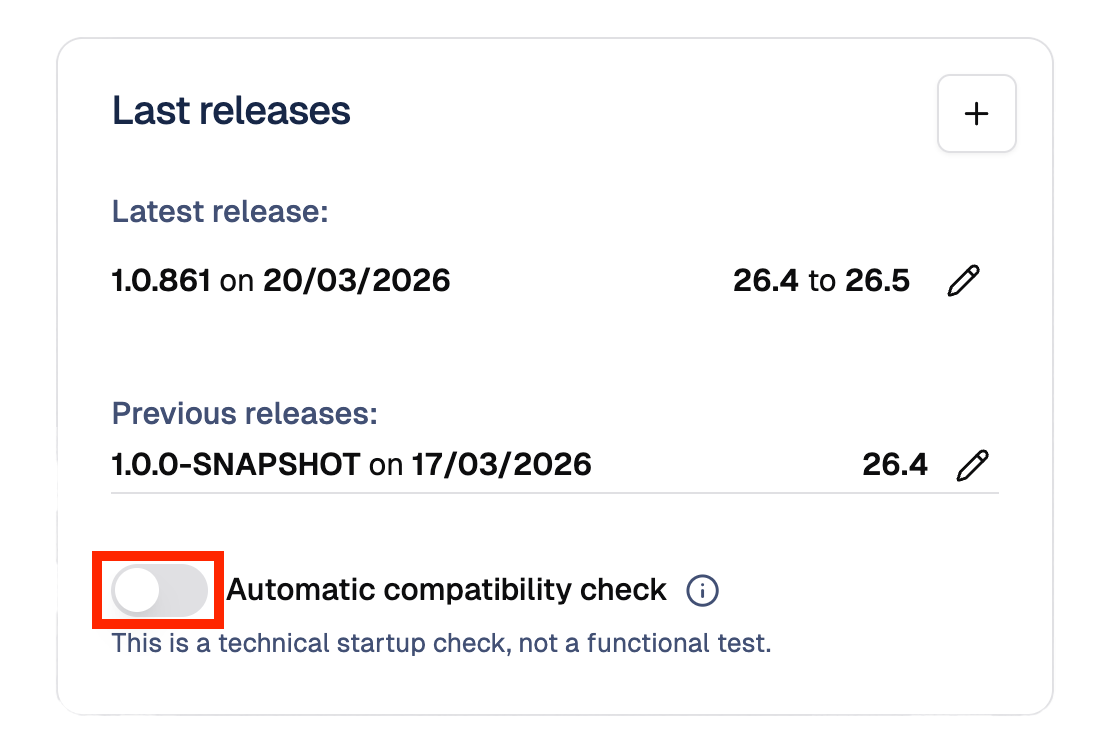

3. Toggle the Auto compatibility check option

When should you enable this?

This is especially useful if your organization manages multiple extensions or maintains long-lived deployments that follow Keycloak upgrades closely. It ensures your extensions stay up to date without requiring manual re-validation after each Cloud-IAM Keycloak release.

Cloud-IAM Console - Extension Auto Compatibility Check

What is an extension release?

A release is a specific version of your extension, packaged with its own JAR files and declared compatible with one or more Keycloak versions. While an extension represents what your customization does, a release represents a specific build of that customization at a point in time.

Each extension can have multiple releases, allowing you to:

• Maintain different versions for different Keycloak environments (development, staging, production)
• Track what changed between versions with dedicated release notes
• Roll out updates progressively across deployments
• Keep older versions available for deployments that haven't upgraded Keycloak yet

Each release goes through an automated technical validation before it can be installed on a deployment.

Extension and release relationship

When would you create a new release?

Common reasons include:

• Bug fixes or security patches
• New features or enhancements
• Compatibility updates for newer Keycloak versions
• Performance improvements
• Configuration or SPI changes

How to create or submit a new extension release?

When your extension is ready to move from development to production, or when you need to ship a bug fix, a new feature, or a compatibility update, you create a new release. Each release carries its own JAR files, Keycloak compatibility range, and release notes, giving your team full traceability across environments and versions.

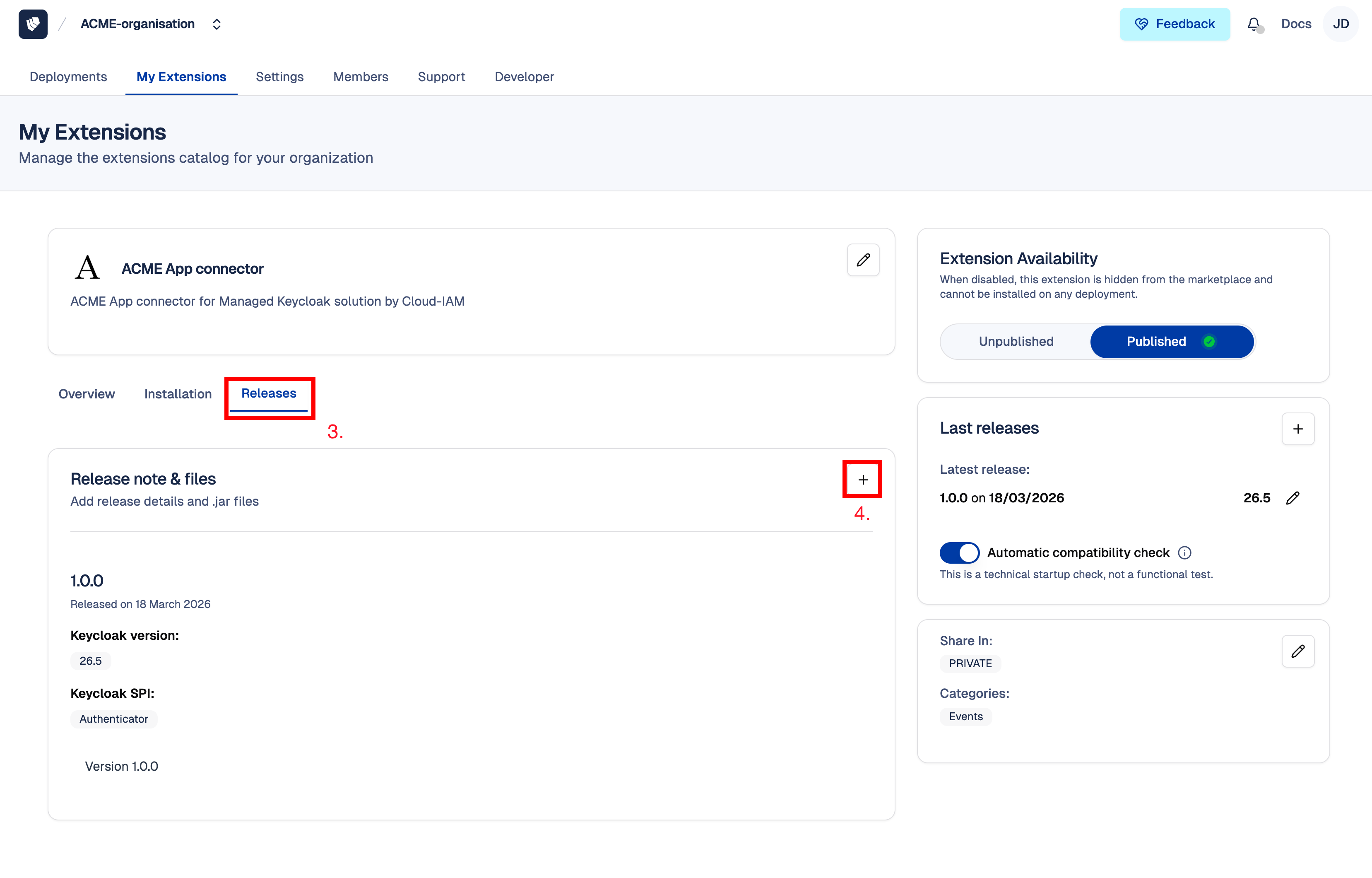

Step 1 — Access release form

1. Follow this tutorial to access My Extensions
2. Select the extension to update
3. Navigate to the Releases tab
4. Click on + to open the release form

Cloud-IAM Console - Step 1 — Access release form

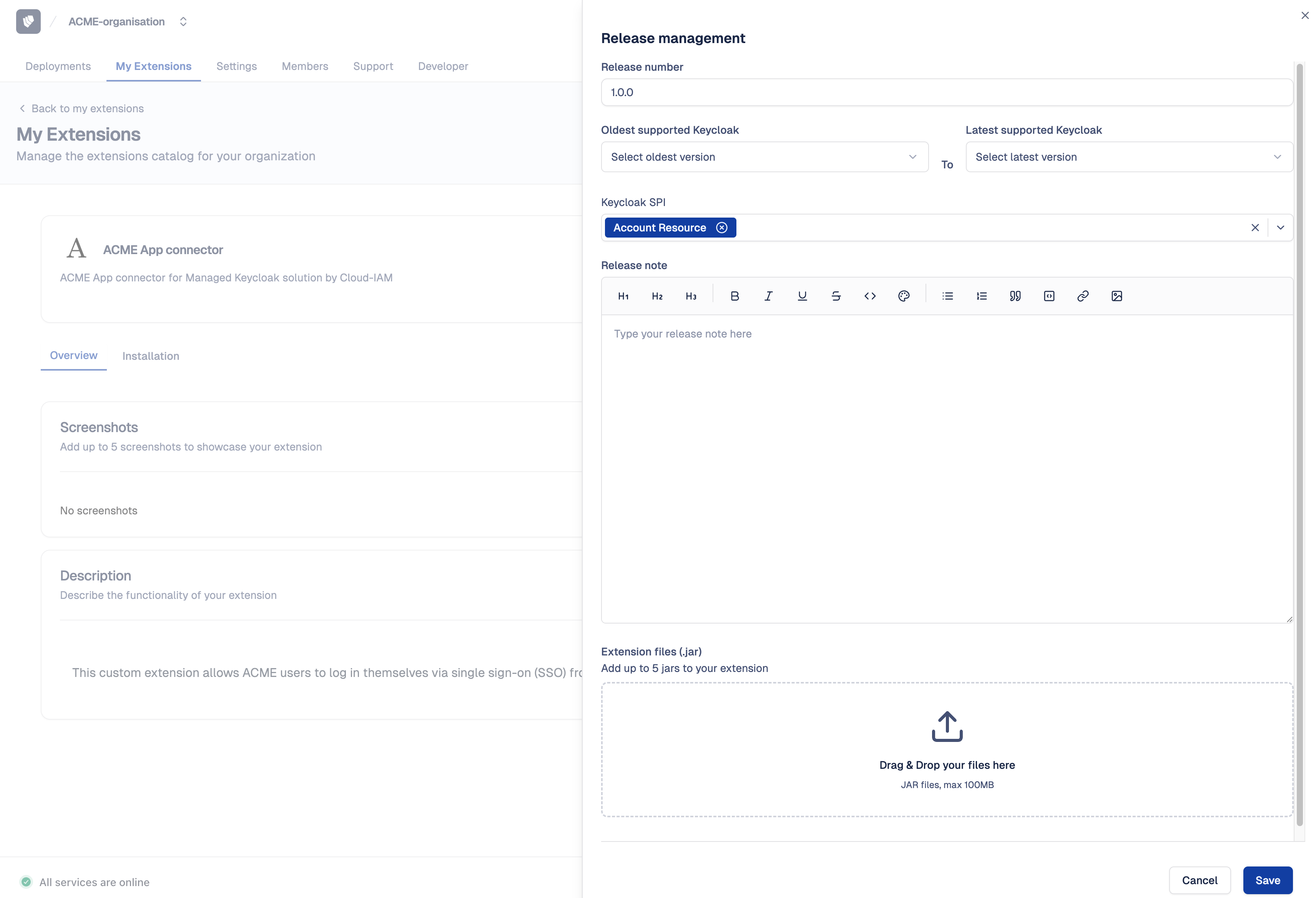

Step 2 — Complete and submit your release

1. Fill in the release details:
   • Version number
   • JAR file(s) (up to 5)
   • Keycloak SPI(s) implemented by your extension
   • Keycloak compatibility range (oldest to latest supported versions)
   • Release notes to describe what changed in this version
2. Click on Save to submit your release

After submission, your release goes through an automated technical validation.

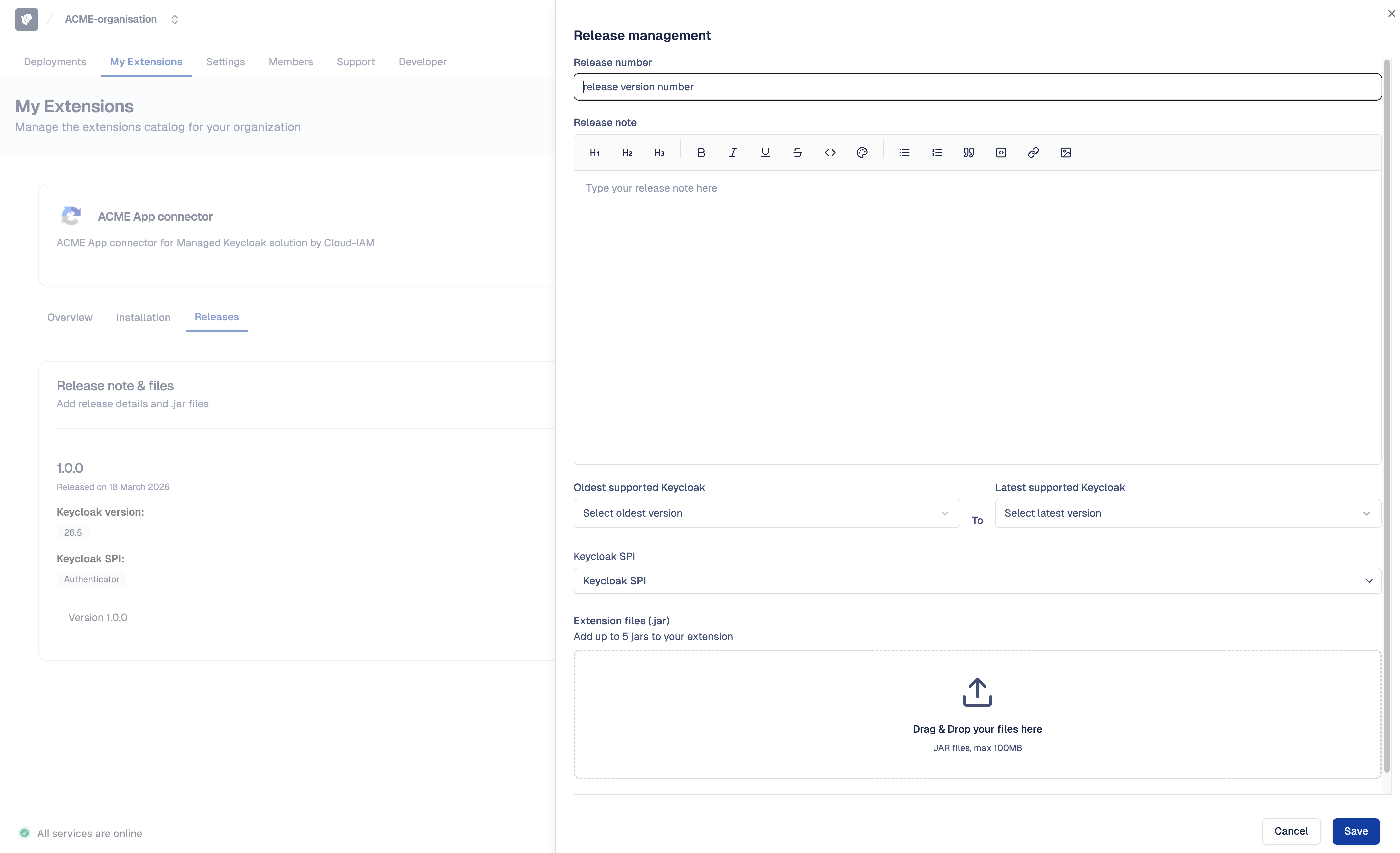

Cloud-IAM Console - Step 2 — Complete and submit your release

How to extend the Keycloak compatibility range of a release?

Before upgrading your Keycloak deployment with Upgrade on-demand, all installed extensions must have at least one validated release compatible with the target Keycloak version. If a new Keycloak version is available on Cloud-IAM and your extension's latest release does not yet declare compatibility with it, you need to extend its compatibility range.

1. Follow this tutorial to access My Extensions
2. Select the extension to update
3. Navigate to the Last Releases tab
4. Click on ✏️ (pencil icon) to open the edit release form
5. In the Latest supported Keycloak dropdown, select the new Keycloak version
6. Click on Save to confirm

After submission, your release goes through an automated technical validation. If the validation passes, you can proceed with upgrading your Keycloak deployment using the Upgrade on-demand feature.

Automate this with automatic compatibility checks

To avoid repeating this process manually after each new Keycloak release, enable automatic compatibility checks. Cloud-IAM will automatically test your latest release against new Keycloak versions within 24 hours of their release.

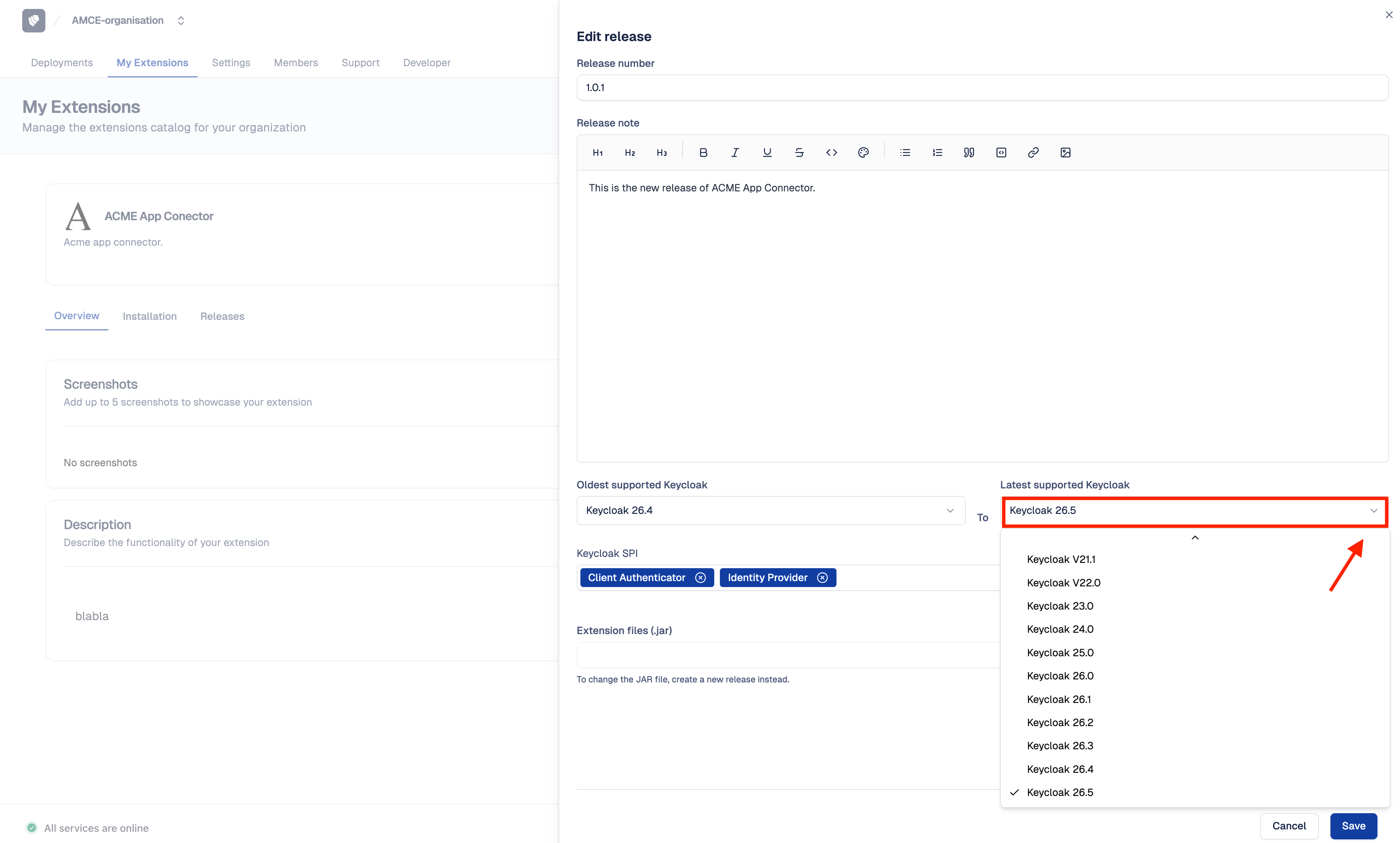

Cloud-IAM Console - Extend the Keycloak compatibility range of a release

What is the extension release validation process on Cloud-IAM?

After submission, each release goes through an automated technical validation to verify compatibility with the declared Keycloak versions. The automated validation covers technical compatibility: correct loading, SPI registration, and absence of conflicts with the declared Keycloak versions. It does not cover functional behavior inside Keycloak, which remains the responsibility of the extension publisher.

For each declared Keycloak version, Cloud-IAM runs the following validation pipeline:

1. Downloads the extension JAR files
2. Loads them into the target Keycloak version
3. Verifies Keycloak starts successfully with the extension loaded
4. Checks SPI registration and absence of conflicts
5. Reports the result back to the release page

The release status transitions through the following states:

Status	Description
Created	Release submitted, waiting for validation
Validating	Automated compatibility checks in progress
Validated	Release passed all checks and is ready to be installed
Validated (forced)	Release passed manually and is ready to be installed
Unvalidated	Release did not pass validation

Which Keycloak versions should I declare for validation?

To minimize validation time for private extension, declare only the Keycloak versions that match your actual deployments. For example, if your organization runs Keycloak 26.0.4 in production and Keycloak 26.1.0 in staging, select only these two versions rather than the full list of available versions.

How to list extensions through Cloud-IAM API?

You can retrieve the list of all custom extensions belonging to your organization programmatically using the Cloud-IAM REST API.

1. Obtain a Bearer token using a Service Account
2. Obtain your Organization ID
3. Execute this command while replacing by your Organization ID.

curl -s \
  -H "Authorization: Bearer $TOKEN" \
  "https://api.cloud-iam.com/organizations/{organizationId}/marketplace/extensions"

Example response:

[
  {
    "extensionId": "550e8400-e29b-41d4-a716-446655440000",
    "name": "My Extension",
    "availability": "GA",
    "documentation": "# Documentation\nMarkdown content...",
    "summary": "Short description of the extension",
    "isPublished": true,
    "howToInstall": "Installation instructions...",
    "logo": "https://storage.example.com/logo.png",
    "categories": [
      {
        "categoryId": "cat-001",
        "name": "Authentication"
      }
    ],
    "screenshots": [
      {
        "extensionId": "550e8400-e29b-41d4-a716-446655440000",
        "rank": 1,
        "filepath": "https://storage.example.com/screenshot-1.png",
        "extension": "png"
      }
    ],
    "latestRelease": {
      "releaseId": "rel-001",
      "version": "1.2.0",
      "status": "VALIDATED"
    },
    "organizationId": "org-001",
    "organizationName": "My Organization",
    "visibility": "PUBLIC"
  }
]

Key response fields:

• extensionId — unique identifier of the extension
• name — display name
• availability — GA (generally available)
• isPublished — whether the extension is visible on my deployments
• visibility — PRIVATE. In the initial phase, all extensions are set to PRIVATE and this value cannot be changed
• categories — list of associated categories
• latestRelease — the most recent release (or null if none)
• organizationId / organizationName — owning organization

TIP

The endpoint always returns 200 OK, even when the list is empty.

How to list releases for an extension through Cloud-IAM API?

You can retrieve the list of all releases belonging to a specific extension using the Cloud-IAM REST API.

1. Obtain a Bearer token using a Service Account
2. Obtain your Extension ID
3. Execute this command while replacing by your Extension ID.

curl -s \
  -H "Authorization: Bearer $TOKEN" \
  "https://api.cloud-iam.com/marketplace/extensions/{extensionId}/releases?page=0&size=20"

Query parameters:

• page — page number, 0-indexed (default: 0)
• size — items per page (default: 20)
• sort — sort field and direction (default: updated_at,DESC)

Example response:

{
  "content": [
    {
      "extensionId": "ext-001",
      "releaseId": "rel-001",
      "version": "1.2.0",
      "availability": "GA",
      "status": "VALIDATED",
      "jars": [
        {
          "jarId": "jar-001",
          "releaseId": "rel-001",
          "jar": "s3://bucket/path/to/extension.jar",
          "filename": "my-extension-1.2.0.jar"
        }
      ],
      "compatibility": ["25.0.0", "24.0.6"],
      "spis": ["org.keycloak.authentication.AuthenticatorFactory"],
      "releaseNote": "Bug fixes and performance improvements.",
      "updatedAt": "2026-03-20T14:30:00Z"
    }
  ],
  "page": {
    "size": 20,
    "totalElements": 5,
    "totalPages": 1,
    "number": 0
  }
}

Key response fields:

• releaseId — unique identifier of the release
• version — version number
• status — current validation status (see Release validation process)
• jars — list of JAR files associated with the release
• compatibility — list of compatible Keycloak versions
• spis — list of Keycloak SPIs implemented by the extension
• releaseNote — release notes
• updatedAt — last modification timestamp
• page.totalElements / page.totalPages — pagination info

How to add a release for an extension through Cloud-IAM API?

Step 1 — Upload the release

1. Obtain a Bearer token using a Service Account
2. Obtain your Extension ID
3. Prepare the releaseData fields:

Field	Required	Description
version	Yes	Release version number (e.g. 1.3.0)
availability	No	Maturity level (default: GA)
keycloakVersions	Yes	List of compatible Keycloak version IDs
keycloakSpi	No	List of Keycloak SPIs implemented by the extension
releaseNote	No	Description of changes in this version

4. Execute this command while replacing by your Extension ID.

curl -s -X POST \
  -H "Authorization: Bearer $TOKEN" \
  -F 'releaseData={"version":"1.3.0","availability":"GA","keycloakVersions":["kc-25.0.0","kc-24.0.6"],"keycloakSpi":["org.keycloak.authentication.AuthenticatorFactory"],"releaseNote":"Added multi-realm support."};type=application/json' \
  -F "jars=@my-extension-1.3.0.jar" \
  "https://api.cloud-iam.com/marketplace/extensions/{extensionId}/releases"

TIP

Returns 204 No Content on success.

Step 2 — Automatic validation

Once the release is created, the system automatically triggers a compatibility check pipeline for each declared Keycloak version. The pipeline verifies that the extension JAR is compatible with the target Keycloak image.

You can monitor the release status by polling:

1. Obtain a Bearer token using a Service Account
2. Obtain your Extension ID
3. Obtain your Release ID
4. Execute this command while replacing by your Extension ID & Release ID.

curl -s \
  -H "Authorization: Bearer $TOKEN" \
  "https://api.cloud-iam.com/marketplace/extensions/{extensionId}/releases/{releaseId}"

Step 3 — Force validation (optional)

If automatic validation fails or is not applicable, you can manually force-validate the release:

1. Obtain a Bearer token using a Service Account
2. Obtain your Extension ID
3. Obtain your Release ID
4. Execute this command while replacing by your Extension ID & Release ID.

curl -s -X PATCH \
  -H "Authorization: Bearer $TOKEN" \
  "https://api.cloud-iam.com/marketplace/extensions/{extensionId}/releases/{releaseId}/force-validation"

TIP

Returns 204 No Content on success. This sets the release and all its associated Keycloak version statuses to VALIDATED.

Troubleshooting custom extension issue

Caused by: java.lang.ClassNotFoundException

If the extension relies on a Keycloak class, this can lead to an error during the start of the extension such as Caused by: java.lang.ClassNotFoundException: org.keycloak.services.managers.XXXXXX because on Quarkus the class loaders are isolated for safety reasons.

This issue can be resolved by declaring explicitly the dependencies needed by the extension in the MANFIEST.MF file.

If for instance, the extension's pom.xml contains such a dependency:

    <dependency>
        <groupId>org.keycloak</groupId>
        <artifactId>keycloak-services</artifactId>
        <scope>provided</scope>
        <version>${keycloak.version}</version>
    </dependency>

Then the following declaration must follow to tell Quarkus to share the classes between the server and the extension.

    <plugin>
       <groupId>org.apache.maven.plugins</groupId>
       <artifactId>maven-jar-plugin</artifactId>
       <configuration>
           <archive>
               <manifestEntries>
                   <Dependencies>org.keycloak.keycloak-services</Dependencies>
               </manifestEntries>
           </archive>
       </configuration>
    </plugin>
