Certificates ​

Cloud-IAM Console - Trusted certificates feature
Cloud-IAM Console - Trusted certificates feature

What is a TLS trusted certificate ​

A trusted certificate is a digital certificate that your system recognizes as valid and secure. Keycloak uses these certificates to verify the identity of external services during secure (HTTPS) connections.

By default, Keycloak trusts certificates issued by well-known Certificate Authorities (CAs). However, if you're connecting to services using self-signed certificates or certificates from a private CA, you must explicitly mark those certificates as trusted.

When to use TLS trusted certificates ​

Trusted certificates are needed when your Keycloak deployment connects to external services that:

  • Use self-signed certificates
  • Use certificates from a non-public CA
  • Are internal/private services not trusted by default

Without a trusted certificate, Keycloak will reject the connection for security reasons.

How to access to TLS Trusted certificates ​

To access trusted certificates feature, follow these steps:

  1. Open Cloud-IAM console
  2. Select the Keycloak deployment you want to configure.
  3. Click on Customisation
  4. Select Certificates

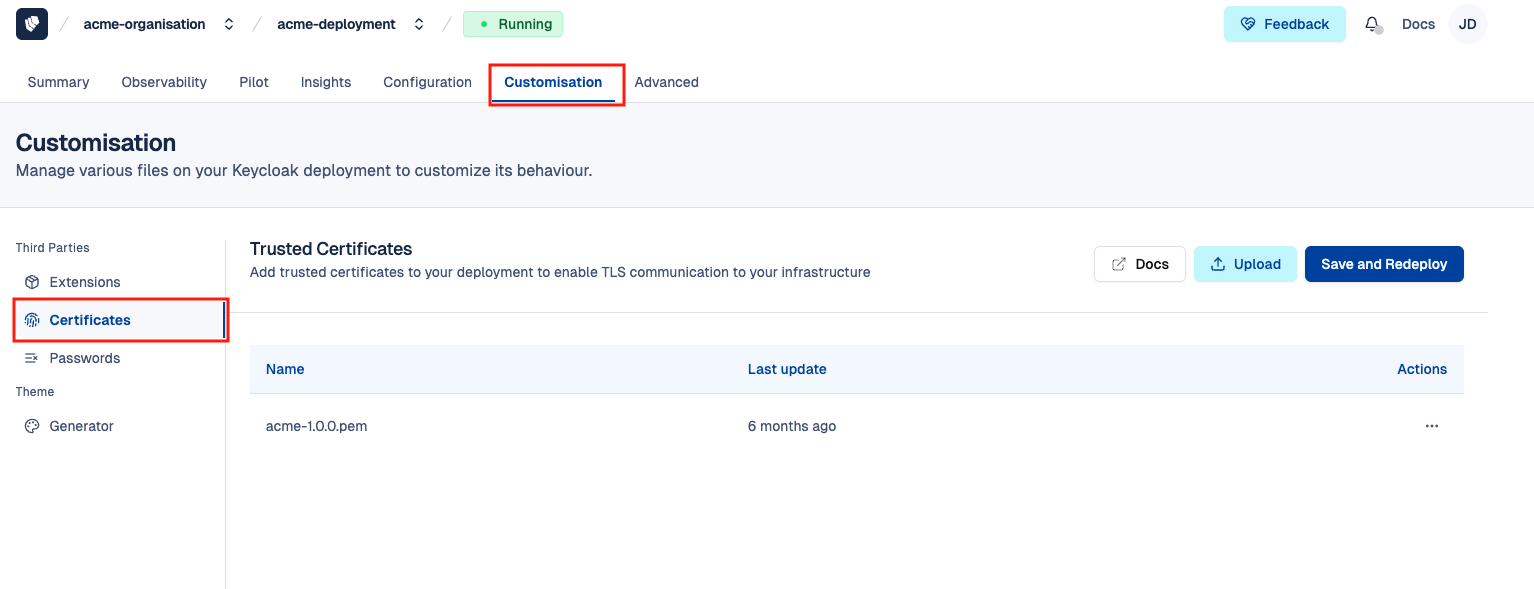

Cloud-IAM Console - Access Trusted certificates
Cloud-IAM Console - Access Trusted certificates

How to declare a TLS trusted certificate ​

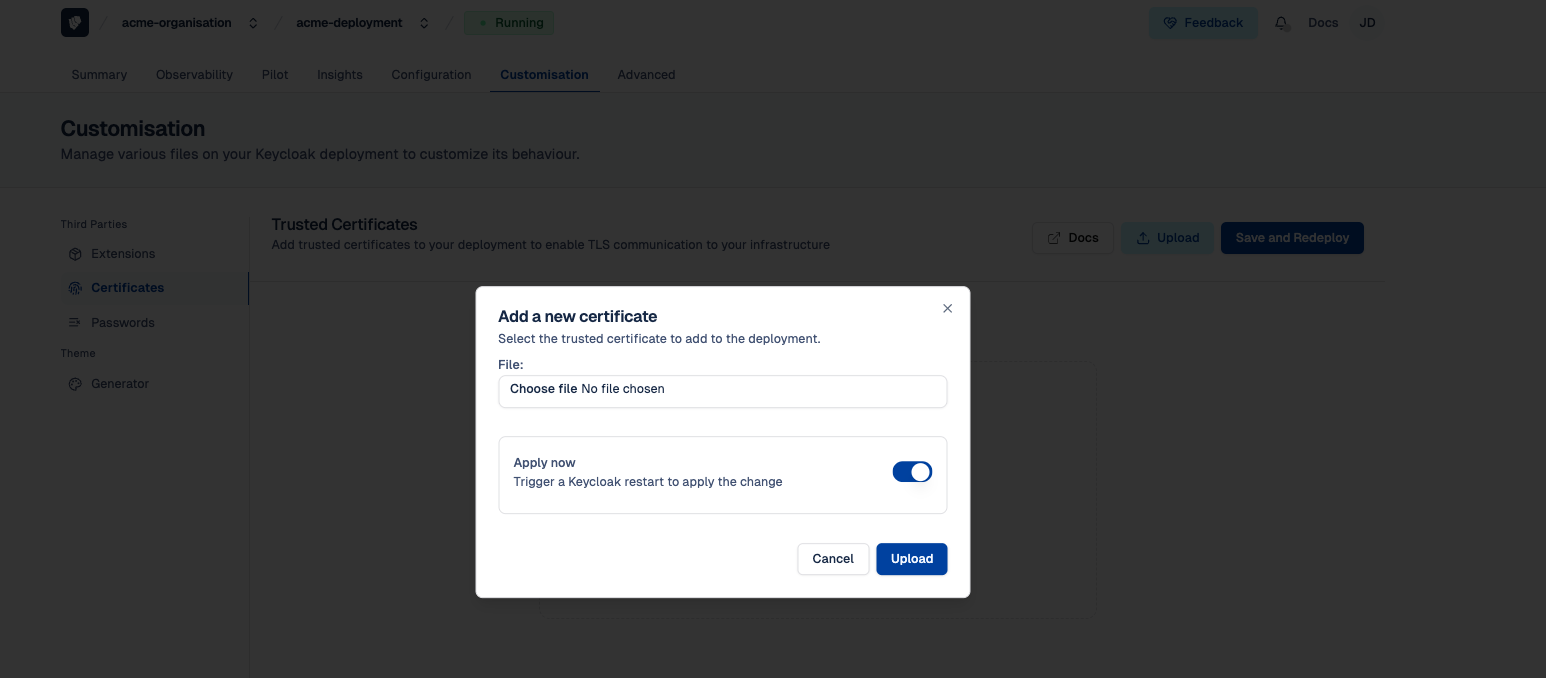

To upload a trusted certificate, follow these steps:

  1. Follow the steps in the How to access to Trusted certificates section
  2. Click on Upload
  3. Select the .pem file you want to import
  4. In the confirmation pop-up, choose whether to apply apply immediately and trigger a restart or upload now and restart later.
  5. Select Upload to confirm your file import

The redeploy process takes approximately 5–10 minutes to complete on you Keycloak cluster.

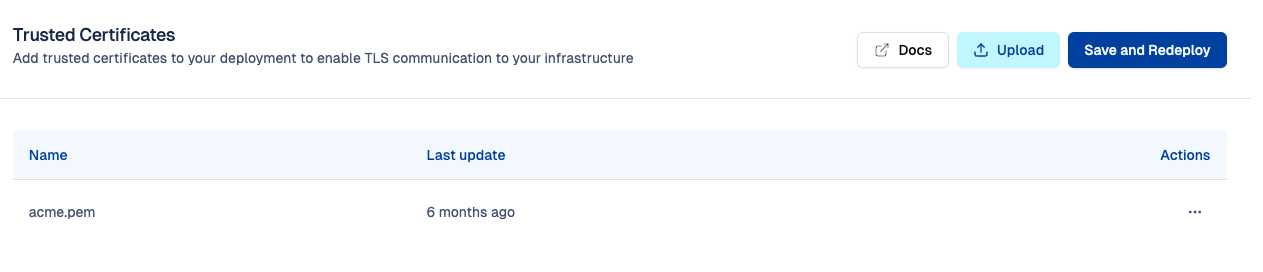

Cloud-IAM Console - Manage trusted certificates
Cloud-IAM Console - Manage trusted certificates

From trusted certificates feature it is also possible to:

  • Download the current version on your local machine
  • Replace it by another version
  • Remove it from the list

File Naming Recommendation

To simplify certificate management, use versioned filenames when uploading your trusted certificates. For example, instead of naming your file acme.pem, use a versioned name like acme-1.0.0.pem.

This practice makes it easier for you to track changes over time and helps the support team quickly identify and work with the correct files during troubleshooting.

Troubleshooting untrusted certificate errors ​

Untrusted certificates usually generate this kind of stacktrace:

Caused by: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
    at sun.security.validator.PKIXValidator.doBuild(Unknown Source)
    at sun.security.validator.PKIXValidator.engineValidate(Unknown Source)
    at sun.security.validator.Validator.validate(Unknown Source)
    at sun.security.ssl.X509TrustManagerImpl.validate(Unknown Source)
    at sun.security.ssl.X509TrustManagerImpl.checkTrusted(Unknown Source)
    at sun.security.ssl.X509TrustManagerImpl.checkServerTrusted(Unknown Source)
    ... 20 more
Caused by: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
    at sun.security.provider.certpath.SunCertPathBuilder.engineBuild(Unknown Source)
    at java.security.cert.CertPathBuilder.build(Unknown Source)
    ... 26 more

:::
